Insulated Glass Unit (IGU) is a structure consisting of two or three glass panes spaced apart with a spacer bar and hermetically sealed, and forming one or two insulated chambers filled with inert gas or dried air.
Modern Glass produces IGUs under the MG Units brand.


Modern Glass IGU assembly technology and high-quality parts:
aluminum or composite spacer bar, butyl sealant and molecular sieve with mesh aperture of 3 angstroms or less ensure a life cycle of at least 20 years for IGUs.

Modern Glass IGUs are produced with argon filling. Having a lower heat capacity and heat conductivity than air, argon reduces convection movements inside the IGU, so the window becomes warmer, with no condensate or ice formed in the lower edge area of the IGU. Argon is 100% safe, non-flammable and non-toxic. Modern Glass can both fill IGUs up in an argon environment and run IGU argon content tests using a GasGlass device without harming the product’s air tightness.

Modern Glass IGUs

General construction IGUs are those with transparent glasses that had no additional heat treatment. Popular for glazing windows and balconies in residential buildings due to their advantages over single-pane glazing

General construction IGUs are those with transparent glasses that had no additional heat treatment. Popular for glazing windows and balconies in residential buildings due to their advantages over single-pane glazing

Antinoise IGUs are efficient in reducing noise impact, which is important in extra noisy environments such as busy streets, highways, airport hotels and railway stations

Antinoise IGUs are efficient in reducing noise impact, which is important in extra noisy environments such as busy streets, highways, airport hotels and railway stations

Shock-proof IGUs are designed to protect human life, guarantee safe storage and transportation of material assets. They rule out injuries caused by an unexpected shock or fall on the glass. Protection classes: A1–A3

Shock-proof IGUs are designed to protect human life, guarantee safe storage and transportation of material assets. They rule out injuries caused by an unexpected shock or fall on the glass. Protection classes:
A1–A3

Fireproof IGUs with Pyropane fire-resistant glass. It is an AGC’s brand of transparent glass treated in a special way and having the following fire resistance classes: E15, E30, E60

Fireproof IGUs with Pyropane fire-resistant glass. It is an AGC’s brand of transparent glass treated in a special way and having the following fire resistance classes: E15, E30, E60

Electrically heated IGUs consist of triplex glass which incorporates glass with a special current conductive coating that performs the function of a heating element

Electrically heated IGUs consist of triplex glass which incorporates glass with a special current conductive coating that performs the function of a heating element

  IGUs with anti-electromagnetic radiation function are shielding devices. Protection is carried out by reflection of electromagnetic radiation

IGUs with anti-electromagnetic radiation function are shielding devices. Protection is carried out by reflection of electromagnetic radiation

Sun control IGUs allow to minimize the intensity of UV radiation level. During warmer months, the room does not overheat, which reduces the cost of air conditioning

Sun control IGUs allow to minimize the intensity of UV radiation level. During warmer months, the room does not overheat, which reduces the cost of air conditioning

Energy-saving IGUs can reduce heat loss through the window. In the cold season they make it possible to save on building heating

Energy-saving IGUs can reduce heat loss through the window. In the cold season they make it possible to save on building heating

Multi-function IGUs combine sun control and energy-saving properties. In addition, if sun control and energy-saving glazing is tempered or makes part of laminated glazing, this IGU acquires additional shock-proofing and noise-reducing properties

Multi-function IGUs combine sun control and energy-saving properties. In addition, if sun control and energy-saving glazing is tempered or makes part of laminated glazing, this IGU acquires additional shock-proofing and noise-reducing properties

Modern Glass production capabilities
Max size: 3,210х6,000 mm

Max size: 3,210х6,000 mm

Max size with laminated glass: 3,210x6,000 mm Max size with laminated glass:
3,210х6,000 mm
Thickness: up to 100 mm Thickness: up to 100 mm
Max weight: 2,500 kg Max weight: 2,500 kg

MG Units production specification

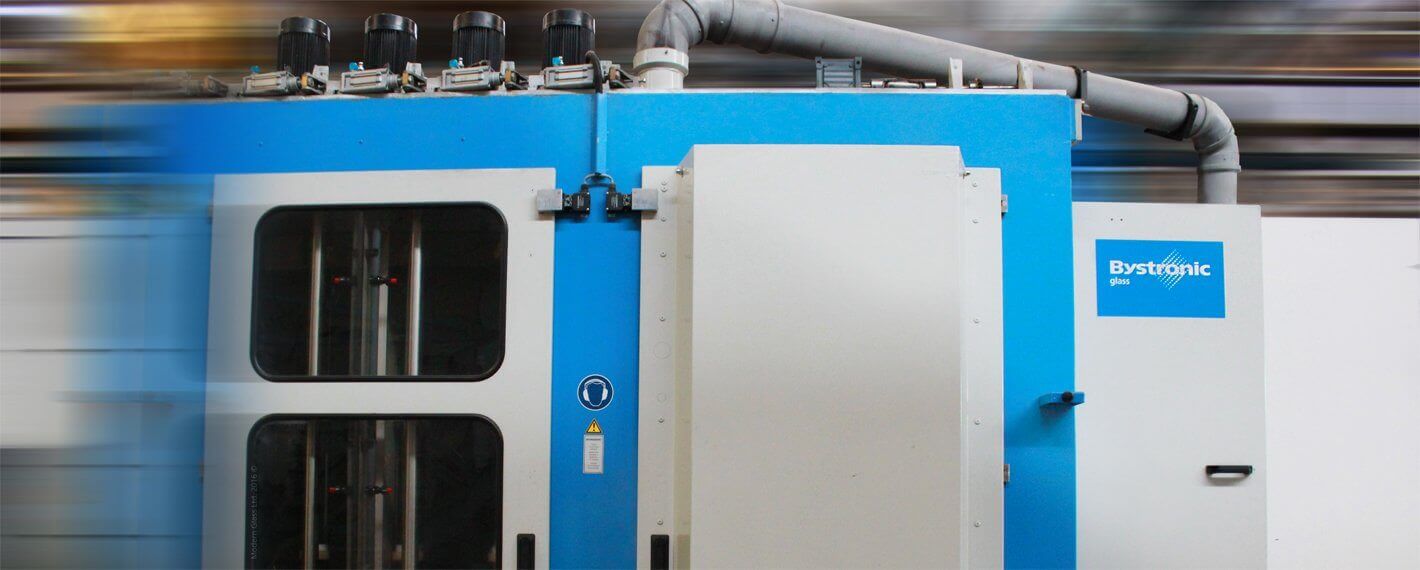

  • Automated lines
  • Vertical sealing
  • Automatic gas-filling press ensures high production speed for argon IGUs
  • Use of warm spacer bars
  • Production of IGUs with a build-in section on 1, 2, 3 or 4 sides
  • Production of IGUs with muntins
  • Production of IGUs with pressure valves
  • Production of spider IGUs
  • Production of tempered glass IGUs with up to 0.01 E emissivity
  • Automatic IGU sealing
    up to 35 mm deep

For additional decorative properties Modern Glass IGUs can be coated with glass-ceramic paint using roller, silk-screen or digital methods.
