Triplex is multilayer laminated glass consisting of two or more panes bonded with a special film. After an impact the glass may crack, but splinters will remain on the laminating layer, thus reducing the risk of people getting an injury and glass falling out.

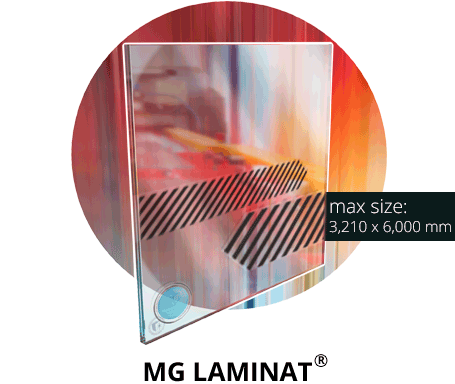

Modern Glass produces triplex under the MG Laminat brand.

MG Laminat applications

  • Translucent structures with high risk of glass breakage and injury
  • Building elements: facade glazing, windows, balcony glazing, glass roofs, glass doors, fencing and partitions
  • Interior: stair steps, glass tables
  • Transport: cabin glazing
  • Special applications: glazing for sports facilities, aquarium glass, external elevators, floor structures, underwater rooms, UV-proof glazing, bullet-proof glass, and fireproof glass
MG LAMINAT ADVANTAGES
Safety: in case of destruction glass is not scattered
Safety: in case of destruction glass is not scattered
Sound insulation: the film keeps noise away
Sound insulation: the film keeps noise away
Functionality: heat-saving and sunlight protection
Functionality: heat-saving and sunlight protection
Protection against mechanical impacts, intrusion and burglary
Protection against mechanical impacts, intrusion and burglary
Resistance to corrosion, attrition, atmospheric precipitation
Resistance to corrosion, attrition, atmospheric precipitation
Protection against ultra-violet radiation
Protection against ultra-violet radiation
MG LAMINAT TYPES
Rough triplex
Rough triplex
Tempered triplex
Tempered triplex
Multifunctional triplex
Multifunctional triplex
Bullet-proof triplex
Bullet-proof triplex
Soundproof triplex
Soundproof triplex
Painted glass triplex

Painted glass triplex

1. Roller painting
Max. size: 2,600х6,000 mm

2. Silk-screen printing
Max. size: 2,200х5,000 mm

3. Full-color digital printing
Max. size: 3,210х6,000 mm

Electrically heated triplex

Electrically heated triplex

Max. size:
3,000х6,000 mm


Electrochromic (smart) triplex

Electrochromic (smart) triplex

Max. size
1,500х3,000 mm

 Fireproof triplex

Fireproof triplex

Fire-resistant Pyropane glass can be used in triplex subject to approval by AGC company

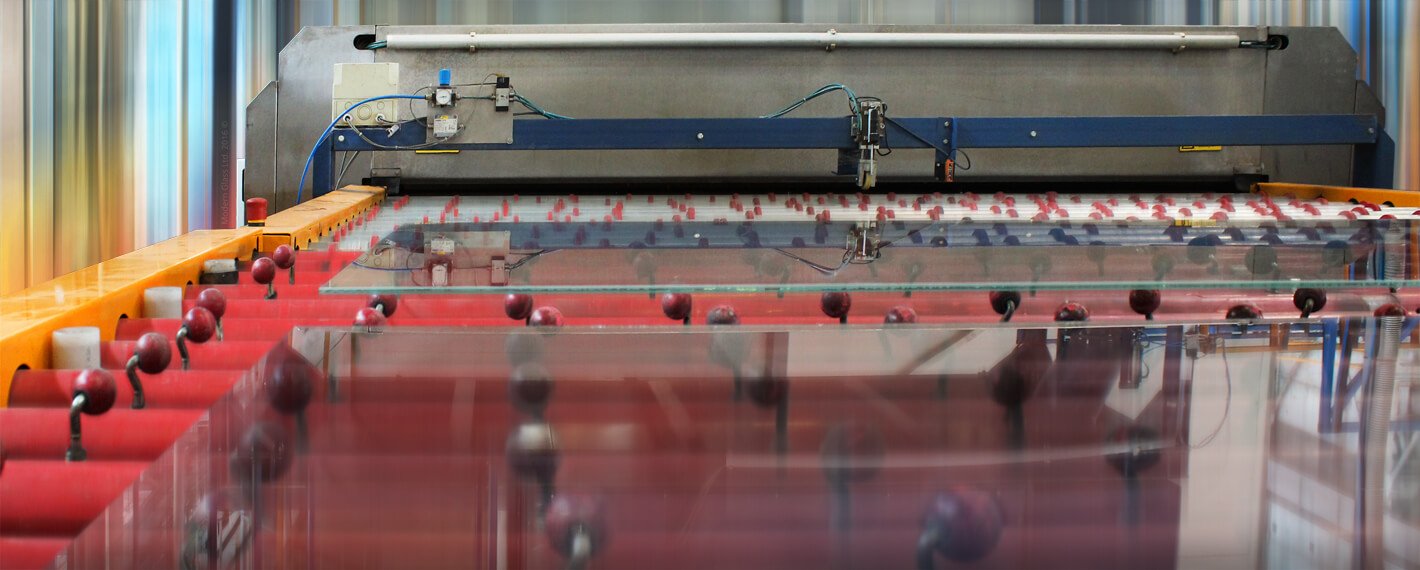

MODERN GLASS PRODUCTION CAPABILITIES
Max size: 3,210х6,000 mm Max size: 3,210х6,000 mm
Glass thickness: up to 100 mm Glass thickness: up to 100 mm
Max weight: 2000 kg Max weight: 2000 kg

MG Laminat production specification

  • PVB film protection against moisture by sealing edges with a special-purpose polymer
  • Production of laminated glass with bushings for spider glazing
  • MG LAMINAT PRODUCTION MATERIALS

    Glass

  • colorless
  • tinted
  • sun control
  • Low-E
  • tempered
  • multifunctional
  • fireproof
  • painted glass
  • electrically heated
  • Film types

  • colorless
  • colored
  • matte
  • special-purpose
  • PVB
  • EVA
  • Saflex
  • Butocite
  • SentryGlas
  • SoundControl
  • SENTRYGLAS FILM ADVANTAGES

  • 100 times as rigid and 5 times as strong as conventional films.
  • Excellent compatibility with different types of sealants.
  • Can be used in open-joint and structural glazing systems.
  • High optical properties, low-iron glazing design.
  • Preservation of initial transparency even after many years of use.
  • Stability and durability in absolutely different weather conditions. There will be no adhesive separation, optical defects, edge turbidity, undesirable transparency decrease or yellowness.
  • Increased durability allows using our glass in various structures requiring large load carrying capacity with a smaller area and lower deformation.
  • Continuously reflects all UV radiation, thereby protecting the interior from its destructive influence. Doesn't interfere with light penetration that is especially important for plants photosynthesis and growth.
  • The material is not fire-retardant, however, it demonstrates better fire containment and fire resistance properties as compared with PVB film.
  • Triplex
